Zhongyi Laser · Marking / Welding / Cutting
Laser marking machines · 4 series

Marking · Welding · Cutting — 20+ standard models from one supplier.

A sample test video within 24 hours of receiving your sample — from laser marking machines and QCW laser spot welders to CO₂ laser cutters, Zhongyi Laser covers the three core industrial processes. Can't decide? Send us a sample — we run a free one-to-one test on it. Or tell us about your production line — we build the machine into it.

ZY-UV laser marking machine exploded view — laser source, scan head, worktable, chiller, PC and cabinet
Fig. 02 · Exploded view 10 labelled parts
See the marking range Free sample test
Choose in 30 seconds
Laser marking
UV · Fiber · CO₂ · Vision · Flying · Portable
→ 6 marking families · 3–200W
QCW spot welding
Suitcase · Handheld
→ 0420QE · 0630QE · 1030QE · EF · EW
CO₂ cutting
100–600W · multiple bed sizes
→ 40×60 to 160×120 cm
Custom build Production-line integration · dual / triple / N-head marking
→ Wire into the line you already run, or add laser heads to order

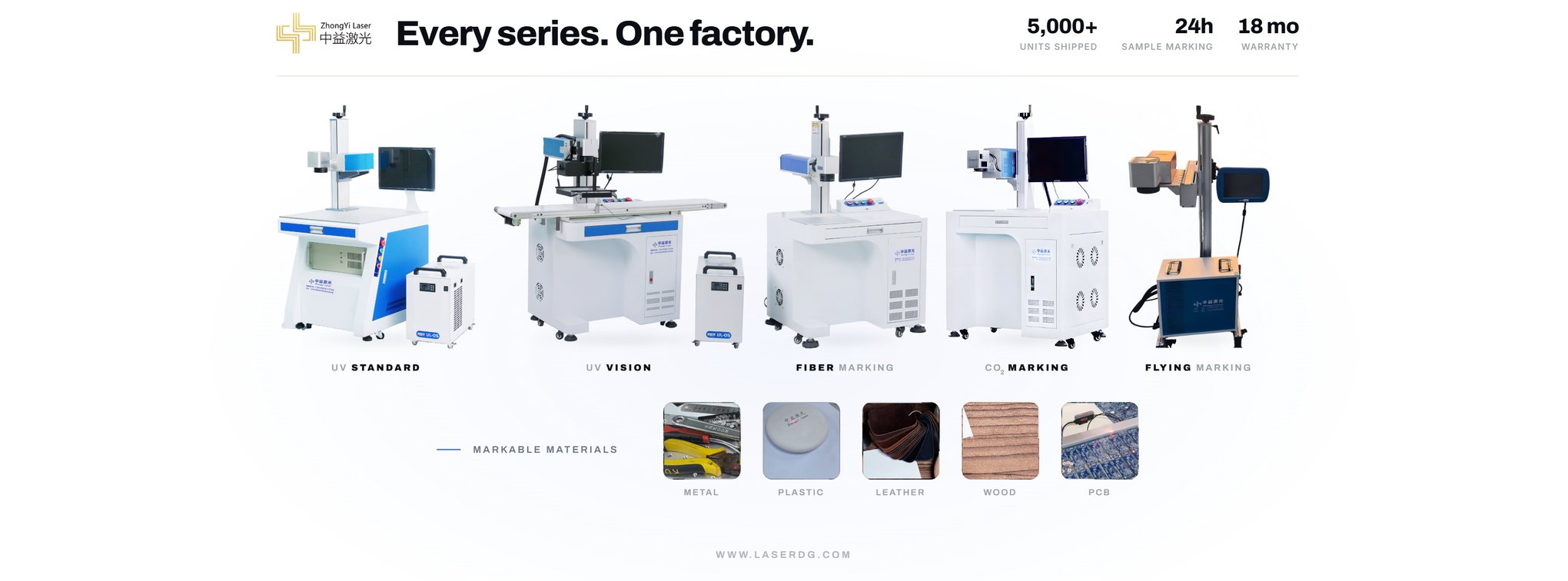

Family 01 · Laser marking

Laser marking machines
6 families, covering every industrial job.

Imported scan heads with a minimum focal spot of 15μm. Supports DXF/PLT/BMP/AI/JPG and generates serial numbers, 2D codes and barcodes automatically. Pick the wavelength first, then the power, then the line integration.

Model 01 · UV cold process

UV Laser Marking Machine

ZY-UV · 355nm · Cold processing
Most chosen

Short wavelength, a 15μm focal spot and a very small heat-affected zone — the surface stays cool and undistorted, which is what heat-sensitive and brittle materials need.

Zhongyi Laser ZY-UV 15W UV laser marking machine ZY-UV · 15W
Zhongyi Laser 3W UV laser marking machine3W
Zhongyi Laser 5W UV laser marking machine5W
Zhongyi Laser 10W UV laser marking machine10W
Zhongyi Laser 15W UV laser marking machine15W
Power range
3W5W7W10W15W · Best seller20W custom
Materials
GlassPlasticsSemiconductor wafersPCB / FPCCeramicsSapphireSilicone
Wavelength355 nm
Scan speed≤7000 mm/s
Repeatability±0.02 mm
CoolingChiller
Field size110/175/300 mm²
Min. spot15 μm
Get a UV Series quote →
Model 02 · Fiber

Fiber Laser Marking Machine

ZY-Fiber · 1064nm · First choice for metal

MOPA fiber source with a 100,000-hour maintenance-free lifetime. Colour oxide marking on stainless and titanium, and the first choice for deep metal engraving.

Zhongyi Laser ZY-Fiber 30W fiber laser marking machine ZY-Fiber · 30W
Zhongyi Laser 20W fiber laser marking machine20W
Zhongyi Laser MOPA 100W fiber laser marking machineMOPA 100W
Zhongyi Laser MOPA 200W fiber laser marking machineMOPA 200W
Power range
20W30W50W70W100W200W custom
Materials
304/316 stainless steelAluminium alloyDeep mould engravingEyewear & watchesAnodised aluminium colour
Wavelength1064 nm
Scan speed≤7000 mm/s
Marking depth≤2 mm
Lifetime100,000 h
Get a Fiber Series quote →
Model 03 · CO₂

CO₂ Laser Marking Machine

ZY-CO2 · 10.6μm · Non-metals

RF laser source with a high pulse frequency — marks and cuts, built for fine work on non-metals.

Zhongyi Laser ZY-CO2 30W CO₂ laser marking machine30W
Zhongyi Laser ZY-CO2 60W CO₂ laser marking machine60W
30W60W100W
Wavelength10.6 μm
Depth≤3 mm
Line width0.05 mm
CoolingAir-cooled
Get a CO₂ Series quote →
Model 04 · Vision

Vision Positioning Laser Marking Machine

CCD · ±0.05mm · No fixture needed

CCD vision finds the part automatically — no fixture alignment needed, small parts can be placed anywhere, and it links straight to a production line.

Zhongyi Laser CCD vision positioning laser marking machine with 120×20cm conveyor CCD · No fixture
Conveyor120×20 cm
Accuracy±0.05 mm
Recognition≤0.1 s
LaserUV/Fiber/CO₂
Get a Vision quote →
Model 05 · Flying marking

Flying Laser Marking Machine

ZY-Flying · Inline coding on the line

A high-speed rotary encoder tracks line speed, supporting item-level unique codes and dynamic databases — no more stopping for static marking.

Zhongyi Laser ZY-Flying flying laser marking machine, inline coding on the production line ZY-Flying
Marking speed≤14000 mm/s
Line width0.01-0.03 mm
Line speed0~120 M/min
Character≥0.15 mm
Get a Flying quote →
Model 06 · Portable & handheld

Portable & Handheld Laser Marking Machines

Portable UV 60kg · Portable Fiber 40kg · Handheld Fiber 6.8kg

Built for small batches, many variants and marking on the move: the compact unit fits in a car boot, works without contact, needs no consumables and runs 24 hours continuously. The handheld unit weighs just 6.8kg and is equipped with an 8-inch fully laminated touchscreen.

Portable UV 60kgPortable Fiber 40kgHandheld Fiber 6.8kg
Handheld power8/20/25/30W
Touchscreen8-inch laminated
Power supply110/220V / 216Wh lithium battery
Repeat positioning0.01 mm
PositioningInfrared
Lifetime100,000 h
Zhongyi Laser portable UV laser marking machine, 60kgPortable UV · 60kg
Zhongyi Laser portable fiber laser marking machine, 40kgPortable Fiber · 40kg
Zhongyi Laser handheld fiber laser marking machine, 6.8kgHandheld Fiber · 6.8kg
Zhongyi Laser handheld UV laser marking machineHandheld UV
Portable UV + Water Tank
Zhongyi Laser B3 split-type manual laser marking machineB3 split · Manual
Get a Portable / Handheld quote →
Family 02 · QCW spot welding

QCW laser spot welders
no burn-through, clean welds.

Quasi-continuous-wave (QCW) fiber laser at 1080nm±5. Two body styles — suitcase and handheld — built for sign letters, lighting, thin-sheet metal welding and DIY work.

Suitcase series Suitcase QE series · air-cooled

3 models · 12–14.5kg
0420QE 12 kg
400W peak / 200W average

A specialist for 0.2–0.8mm sheet, 4J/10ms per spot, and exceptionally light to carry.

Zhongyi Laser 0420QE suitcase QCW laser spot welder, 400W peak 0420QE · 12kg
Wavelength1080nm ±5
Weld thickness0.2-0.8 mm
Energy per spot4 J/10ms
Dimensions374.5×191×330 mm
0630QE 13 kg
600W peak / 300W average

Welds 0.3–1.5mm sheet at 6J/10ms — double the throughput and a wider range of jobs.

Weld thickness0.3-1.5 mm
Energy per spot6 J/10ms
Pulse frequency1-300 Hz
CoolingAir-cooled
1030QE Flagship
14.5 kg
1000W peak / 300W average

Handles 0.3–2.0mm plate at 10J/10ms — the flagship balance of power and portability.

Zhongyi Laser 1030QE suitcase QCW laser spot welder, 1000W peak 1030QE · 14.5kg
Weld thickness0.3-2.0 mm
Energy per spot10 J/10ms
Core diameter100 μm (customisable)
Pulse frequency1-300 Hz

Handheld series Handheld EF / EW series

3 models · Air-cooled / Water-cooled
1030EF 30 kg
1000W / 300W · air-cooled

The value entry point for precision welding — cost-effective and dependable.

Zhongyi Laser ZY1030EF handheld laser spot welder, air-cooled 1000W 1030EF · Air-cooled
Modulation frequency1-5000 Hz
Fiber length5M / 10M
Dimensions547×300×473 mm
1570EF 32 kg
1500W / 700W · air-cooled

For high-speed, high-precision welding, at 15J/10ms per spot.

Energy per spot15 J/10ms
Fiber length5M / 10M
Dimensions547×300×533 mm
2080EW Flagship
81 kg · Water-cooled
2000W / 800W · water-cooled

High-power water-cooled design, 20J/10ms per spot, built for long continuous industrial shifts.

Zhongyi Laser ZY2080EW handheld laser spot welder, water-cooled 2000W 2080EW · Water-cooled
Energy per spot20 J/10ms
Modulation frequency1-5000 Hz
Dimensions852×372×701.5 mm
Welding reference · stainless / mild steel / aluminium

The values below are relative references — fine-tune them to your material, thickness and environment. Comparison across the 600W / 1000W / 1500W power steps.

Material / thickness mm600W · power %600W · freq. Hz1000W · power %1000W · freq. Hz1500W · power %1500W · freq. Hz
Stainless 201/304/316 · 0.1-0.3202020202045
Stainless · 0.4-1.0202020202060
Stainless · 1.1-2.0201020202075
Stainless · 2.1-3.050201002010020
Mild steel · 0.1-0.3204520602055
Mild steel · 0.4-1.0206020752065
Mild steel · 1.1-2.02075201002080
Aluminium 6061/5052 · 0.4-1.0//10202070
Get a QCW welder quote
Family 03 · CO₂ laser cutting

CO₂ laser cutters
50% more efficient, integrated cabinet.

DSP digital control, in-house drive and optics, integrated cabinet. Choose twin, triple, quad or multi-head laser configuration; it links to AutoCAD / CorelDRAW live and takes USB, flash drive and Ethernet in one port.

ZY-CO2 cutting series

CO₂ Laser Cutting Machine

100W · 130W · 150W · 300W · 450W · 600W

Bed sizes from 40×60 to 160×120 cm, covering non-metal sheet cutting in signage, lighting, woodworking, leather and crafts. Engraving 0–60 m/min, cutting 0–48 m/min, repeatability ±0.05mm.

Zhongyi Laser ZY-CO2 CO₂ laser cutting machine ZY-CO2 Cutting
Power range
100W130W150W300W · Flagship450W600W
Bed size
40×60 cm60×90 cm130×90 cm160×120 cm

Technical specifications

Laser typeCO₂ / RF laser
WorktableHoneycomb / blade / grid
Motion systemStepper / servo
Engraving speed0-60 m/min
Cutting speed0-48 m/min
Repeatability±0.05 mm
Power supplyAC 220V ±10% 50/60Hz
Laser head configurationTwin / triple / quad / multi-head
DSP digital control

Integrated cabinet, 50% more efficient

In-house drive and optics in one structure — stable and reliable, running 50% more efficiently than comparable machines.

Live integration

Live AutoCAD / CorelDRAW integration

Graphics software integrated live — what you see is what gets cut.

Three-in-one data transfer

USB + flash drive + Ethernet in one

Our own three-in-one data transfer design, hot-swappable and simple to use.

Get a CO₂ cutter quote
Family 04 · Custom build / line integration

Not just a machine —
wired into your line.

A marker should not sit alone beside the production line. Every marking machine we build can be integrated into the line you already run and turned into an inline automated marking station. We can also build dual-head, triple-head or N-head configurations around your output and part layout.

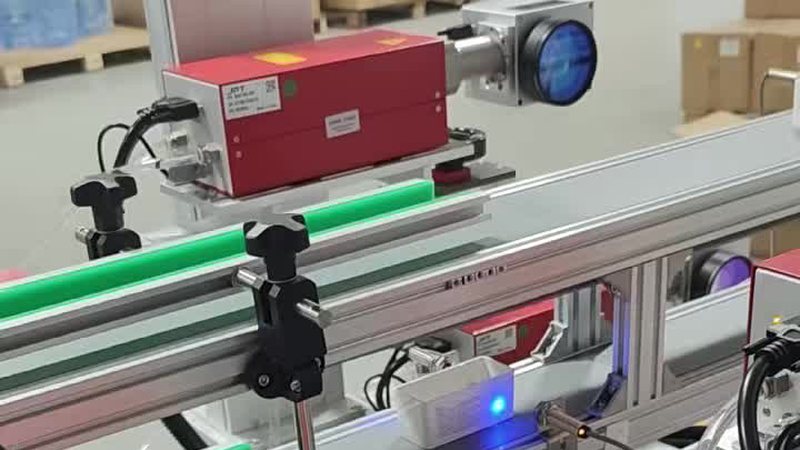

Multi-lane vision-positioning marking line at Zhongyi Laser (click to play video)
Video · multi-lane vision marking line Click to play · Zhongyi Laser · Dongguan
Bowl feeder feeding small parts into a Zhongyi Laser marking station
On site · bowl feeder auto-loading Small parts, high volume
Capability A · Line integration

Connect your existing line, mark inline

Built to your line
01
Plugs into your line

Conveyors, rotary tables, robot arms, bins and auto load/unload units — without changing your existing process or cycle time.

02
Signal handshaking

PLC I/O, photoelectric sensors and rotary-encoder speed tracking — the mark fires on arrival and follows line speed.

03
Inline vision positioning

CCD camera finds the target automatically at ±0.05mm and ≤0.1s recognition. Parts can be placed loosely — no dedicated fixture needed.

04
Continuous inline marking

Optional bowl feeders, bins or robot handling. Marking data can be pushed back to your line system; rejects are flagged and diverted.

Line types we integrate with
Belt conveyor / assembly line Rotary / indexing table Robot pick & place Bowl feeder Roll-to-roll / tube & cable Inline flying coding
Capability B · Multi-head marking

Dual · Triple · up to N heads

Add several laser heads to one machine and mark multiple positions in a single pass — small parts in high volume, multi-face marking and multi-column layouts all finish in one run, without buying several machines to raise output.

Head count
Dual · most common Triple Four Six N · on request
Sync
Simultaneous marking

All heads output the same pattern and parameters — ideal for batches of small parts in an array.

Timed
Independent control

Each head gets its own pattern and power, so one clamping completes multiple faces and contents.

Our CO₂ cutting series already ships with dual / triple / four / multi-head options. For marking, head count, field size and station layout are quoted per job.

From brief to production

Custom build in five steps

Custom does not mean uncertain. Every step has a deliverable you can sign off — the design and the sample test are proven before we touch your line.

01
Brief & part review

Send material, size, marking content and cycle time — an engineer responds within 12 hours.

02
Sample test & design freeze

Free sample testing with a video back within 24 hours; the design is fixed once you approve the result.

03
Fixture & tooling design

Custom fixtures, feed tracks and locating mechanisms designed around your part for consistency and cycle time.

04
Line integration & FAT

Signal handshaking and continuous run tests against your line at our factory before shipment.

05
Delivery & training

Bilingual manual and video tutorials included, plus a 12-hour service response.

Send your line brief See the marking range →

Not sure which model?
Send a sample — the test is free.

Ship your material to our Dongguan factory and a Zhongyi Laser engineer returns a test video and report within 24–48 hours. You approve the result before we talk price.

Send a sample +86 159 9995 5734
