Hot Products

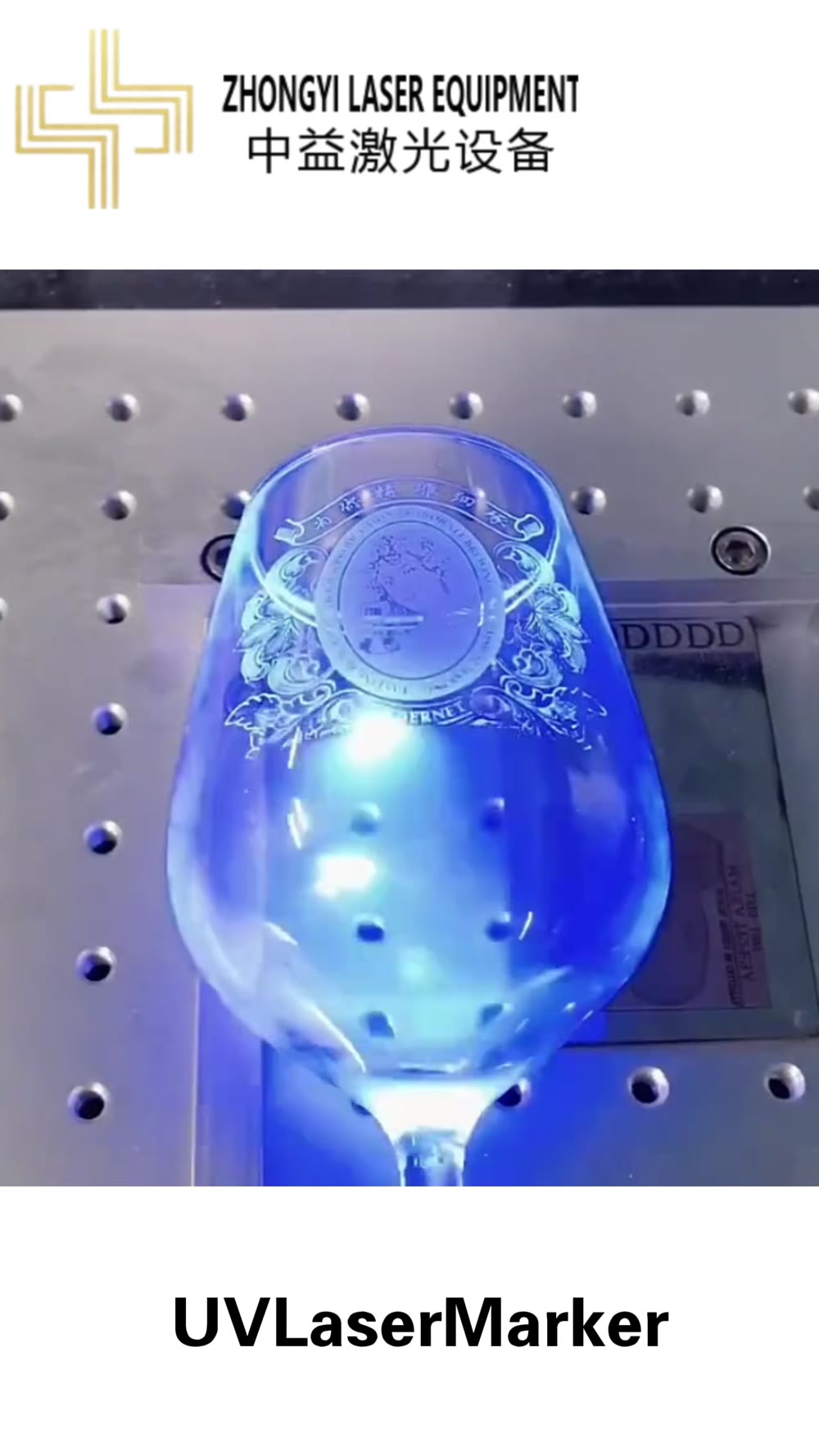

Purple light marking machine
System environment: win7/win8/win10
Output power: 3w/5w/8w/10w/15W/20W
Supported formats: PLT BMP JPG PNG DXF
Marking speed: 7000mm/s
Laser type: integrated ultraviolet solid-state laser
Cooling method: constant temperature water cooling
Minimum marking: 0.2mm
Spot diameter: 0.015mm
Marking depth: ≤ 0.3mm depending on material
Device power consumption: 800w
Power requirement: 220v+10% 50/60Hz
External dimensions: 800 * 650 * 1450mm
Marking range: standard (110 * 150mm) optional (180/220/250)

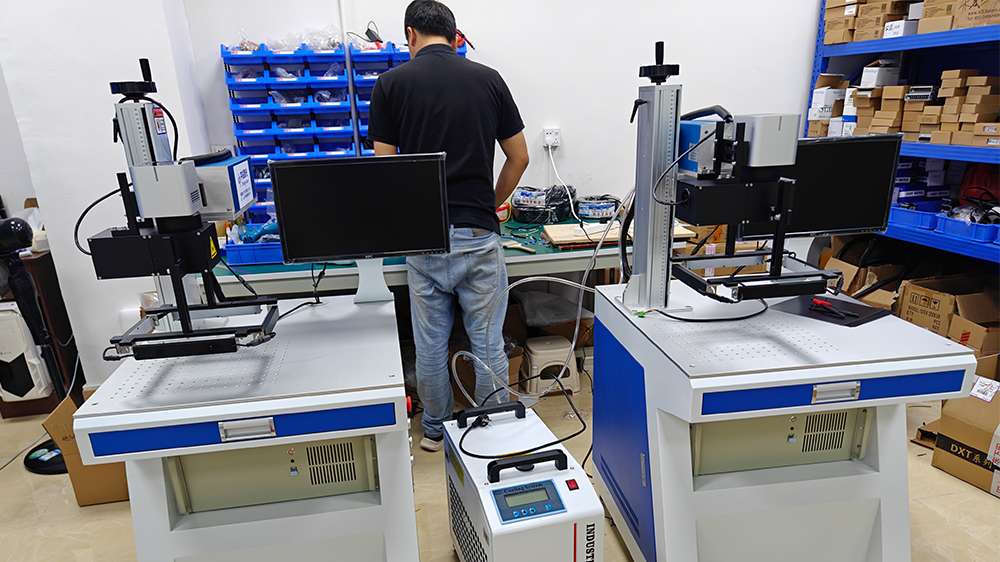

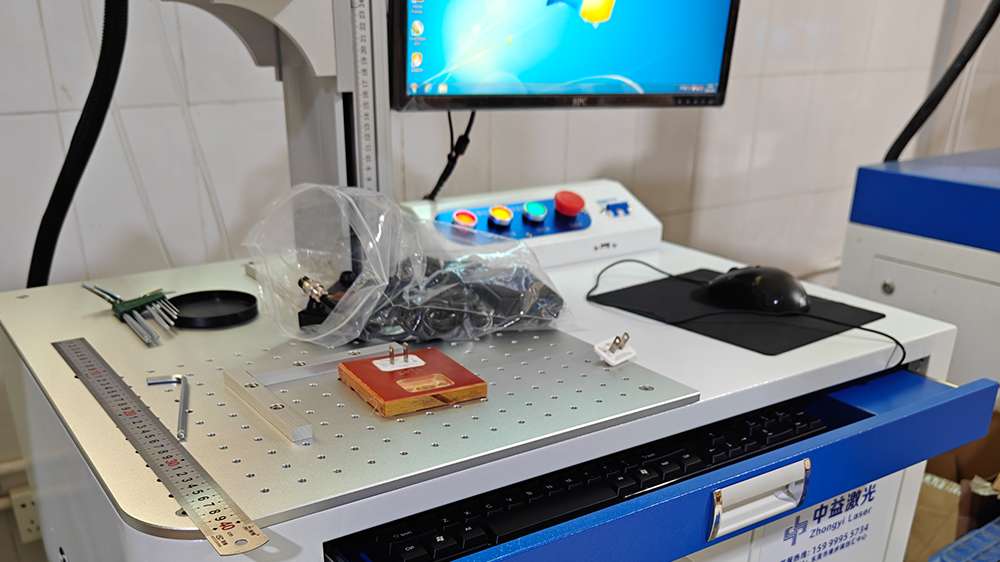

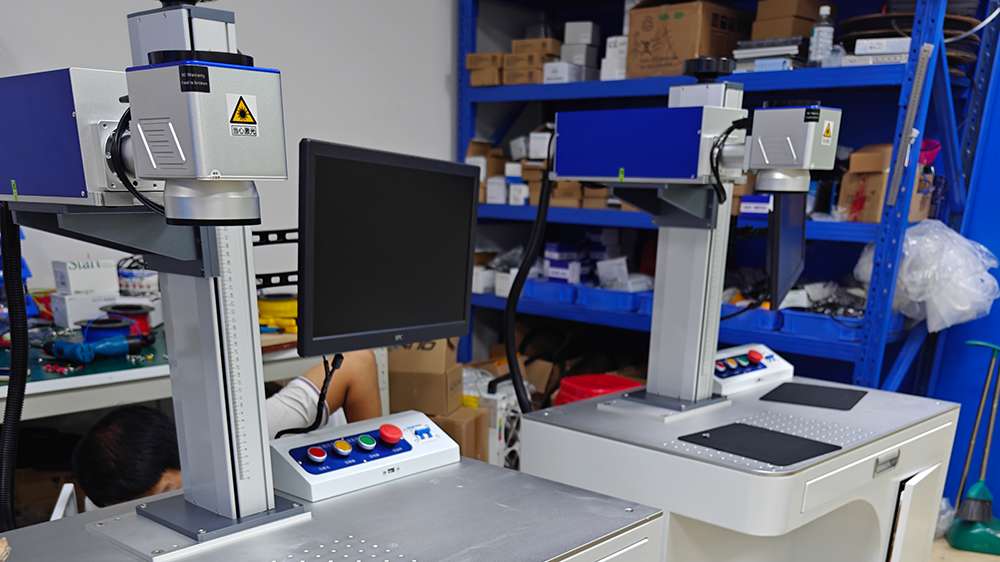

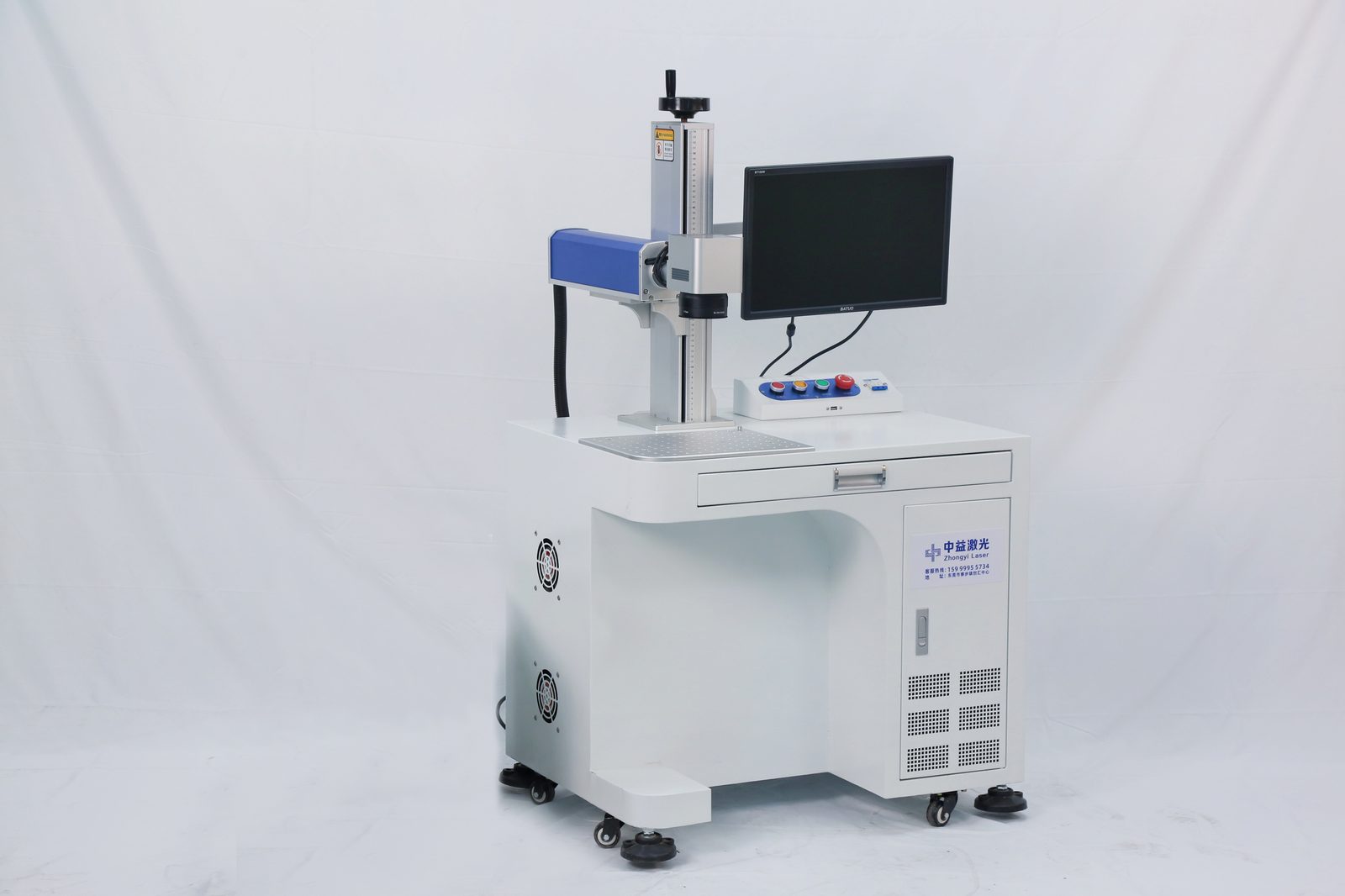

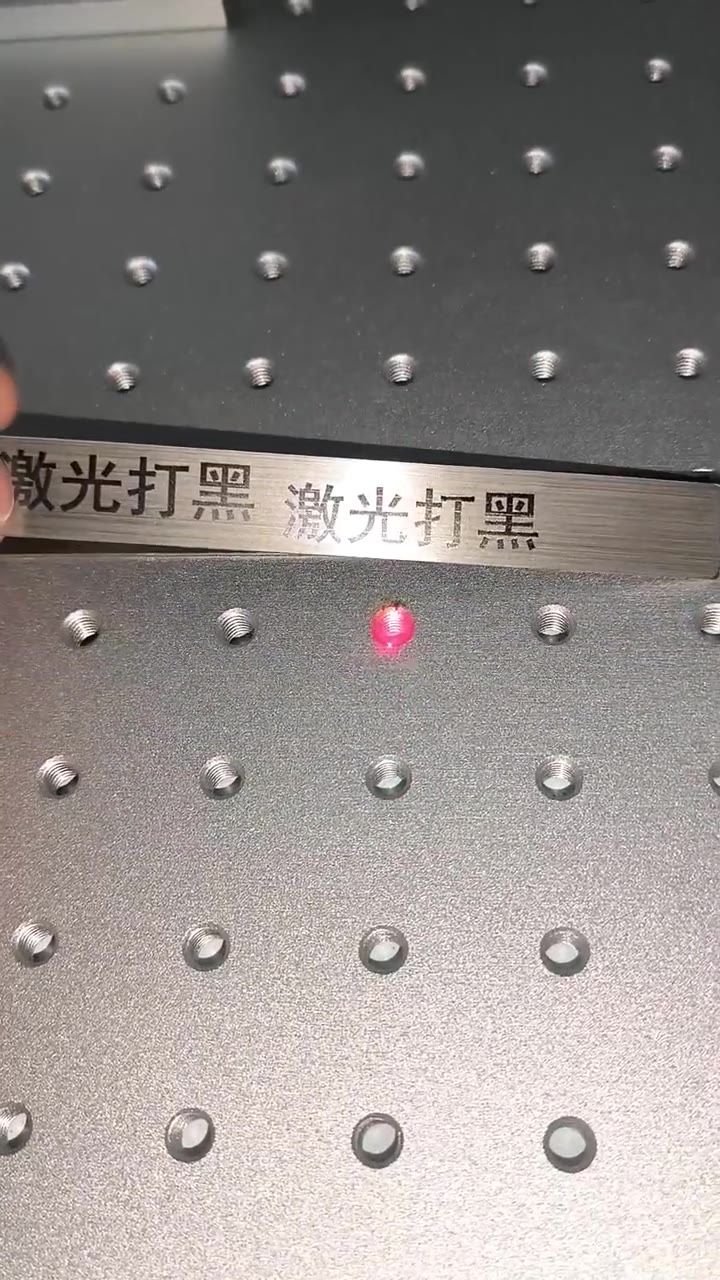

Fiber Laser Marking Machine
Name:ZY-GO-20W ZY-XGQ-20W
Laser:Fiber-opticlaser
Laser Wavelength:1064nm
Output Power:1oW 2ow 30W 70W 100W
Frequency Range:20-400KHZ
Maximum Speed:8000mm/s
Repeatability:0.02mm
MarkingRange:300mm*300mm
Pulse Width Range:200ns
Power Dimensions:C220V/50HZ
Cooling Method:forced air cooling

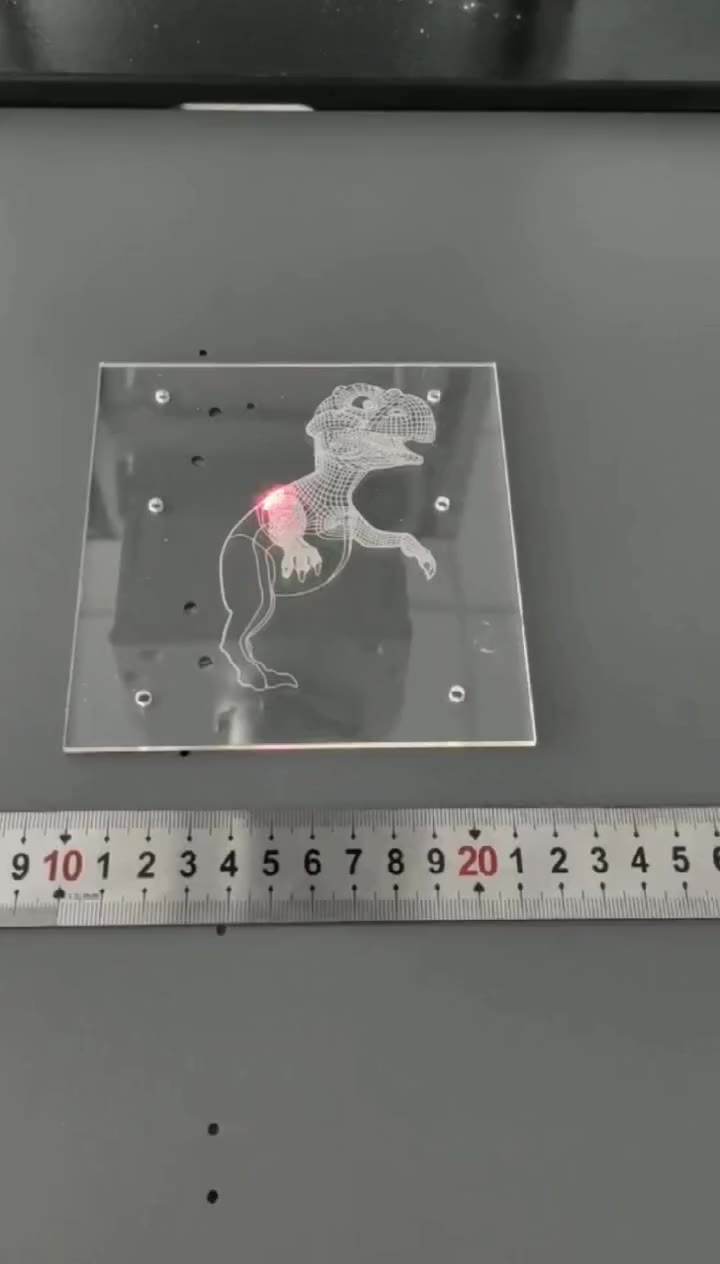

Carbon dioxide laser marking machine
System environment: win7/win8/win10
Output power: 30w/50w
Supported formats: PLT BMP JPG PNG DXF
Marking speed: 7000mm/s
Laser type: closed RF CO2 laser Beam quality:<2
Cooling method: built-in air cooling Minimum marking: 0.4mm
Laser wavelength: 1064um9.3/10.6 optional
Spot diameter: 0.1mm 10/20 Spot optional
Pulse frequency: 0kHz-25kHz
Marking depth: ≤ 3mm depending on material
Equipment power consumption: 600w
Power requirement: 220v+10% 50/60Hz
External dimensions: 800 * 600 * 1450mm
Marking range: Standard configuration: 110 * 110mm
Optional configuration: 150/200/300

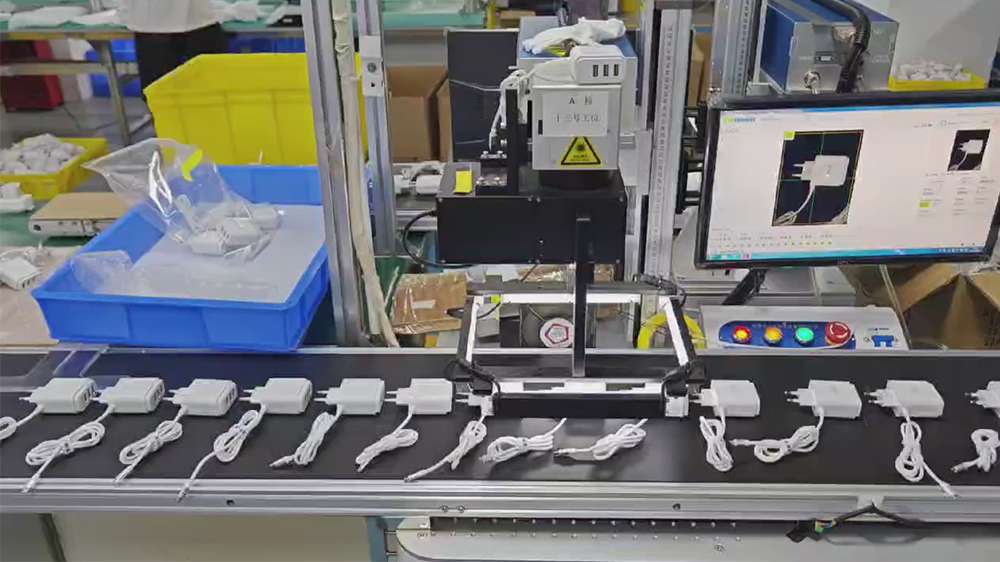

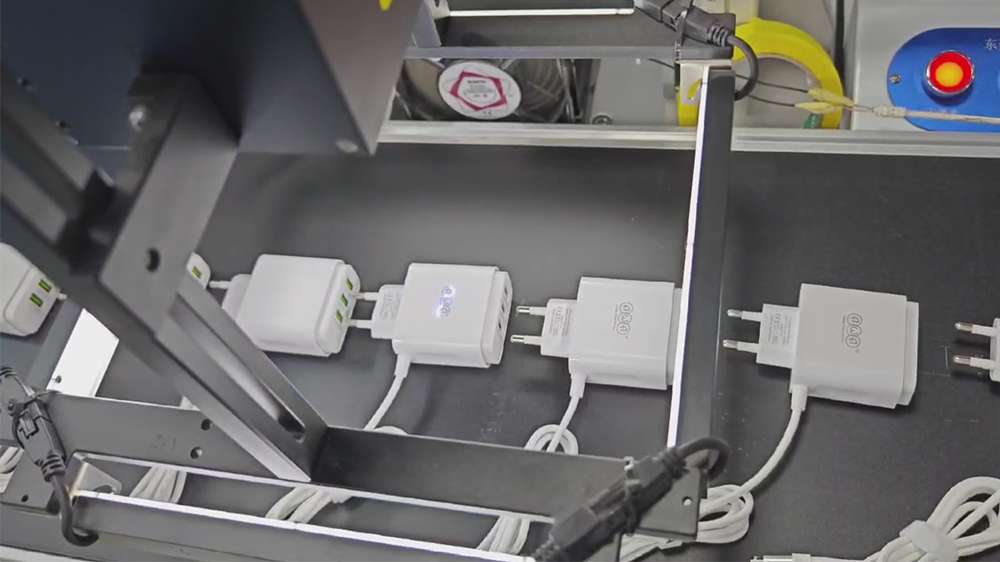

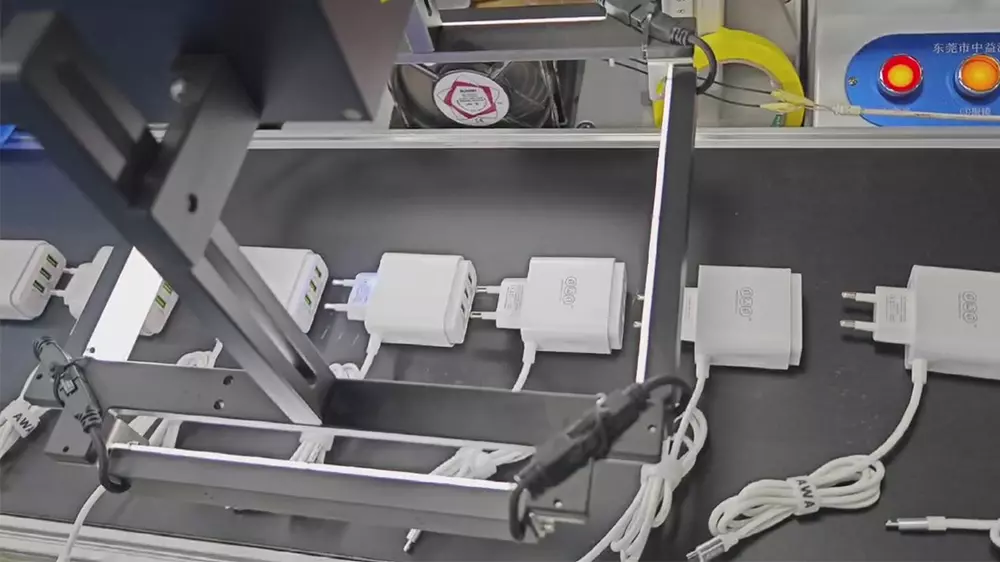

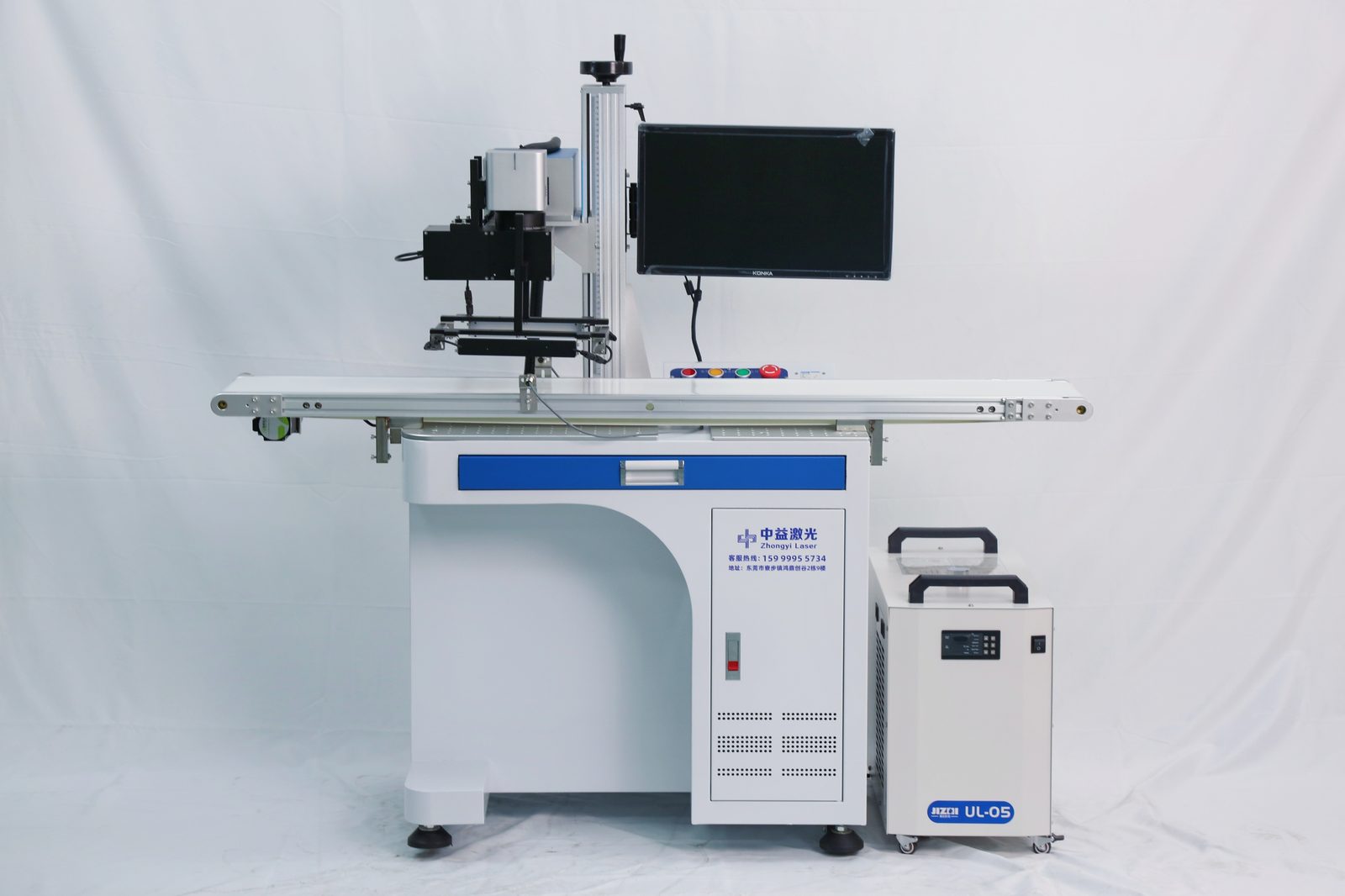

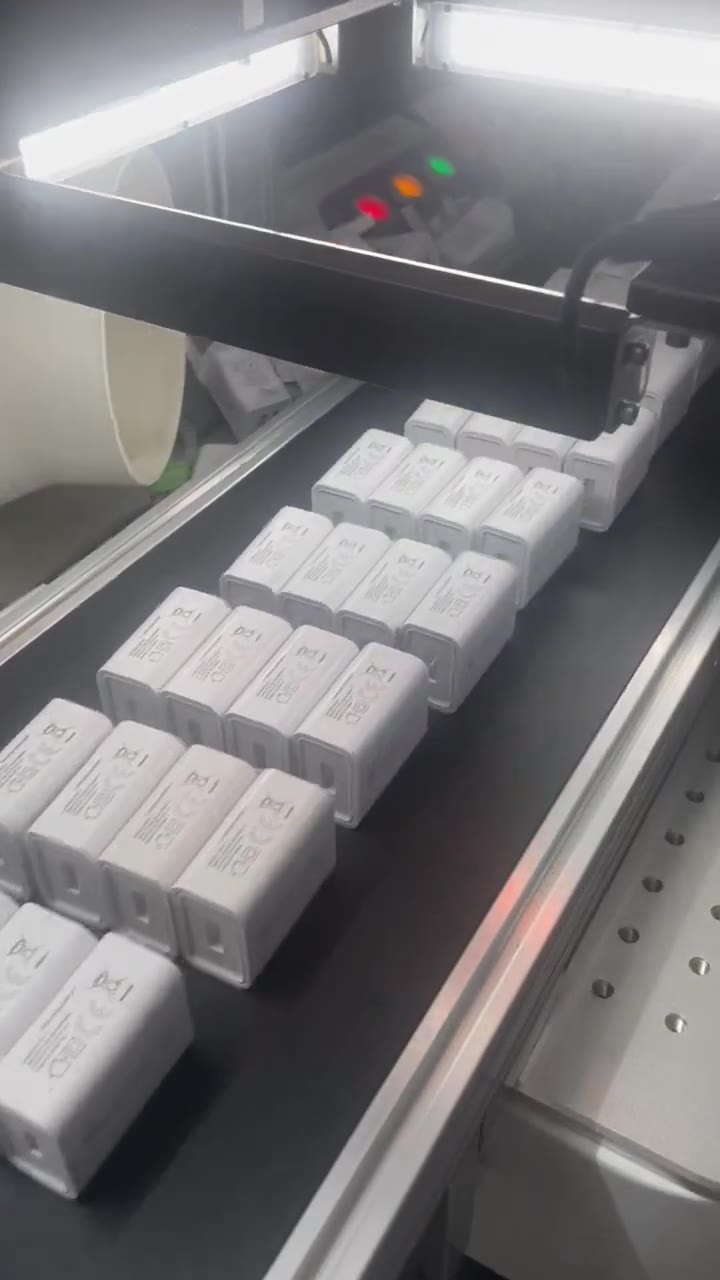

Visual positioning laser marking machine
Name:ZY-VP-20W
Laser:Fiber-opticlaseri
Laser Wavelength:1064nm
output Power:1oW 20W 30W 70W 100W
Frequency Range:20-400KHZ
Maximum Speed:8000mm/s
Repeatability:±0.02mmi
Marking Range:300mm*300mm
Pulse Width Range:200ns
Power Dimensions:C22ōV/50HZ
Cooling Method:forced air cooling
About us
Dongguan Zhongyi Laser Equipment Co., Ltd
Zhongyi Laser is a high-tech enterprise specializing in the research and development, production, and sales of laser devices and complete sets of laser processing application equipment.

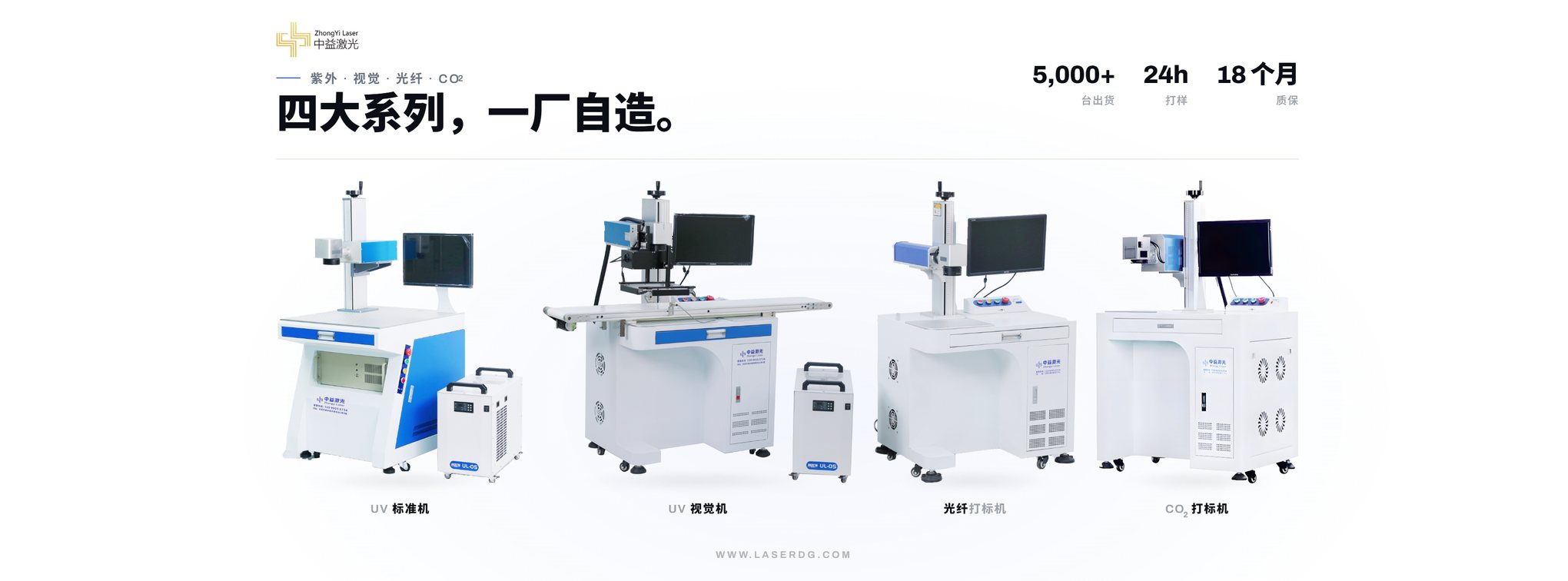

The company's leading products include: laser marking machine series (fiber laser marking machine, CO2 laser marking machine, green laser marking machine, ultraviolet laser marking machine, 3D marking machine, PCB automatic marking machine, etc.), laser welding machine (fiber transmission laser welding machine, fiber laser welding machine, automatic laser welding machine, mold laser welding machine, jewelry laser spot welding machine, high-speed galvanometer laser welding machine, handheld laser welding machine, etc.), Laser cutting machine series (UV fine laser cutting system, precision laser cutting machine, large format laser cutting machine, etc.).
The product has been widely used in handicrafts, electrical appliances, mobile communication, hardware products, tool accessories, and precision instruments Jewelry accessories, glasses and watches, integrated circuits, craft gifts, plastic molds, medical equipment and other industries.
The belief in meeting customer requirements and pursuing superior quality is our eternal goal.We warmly welcome domestic and foreign customers to visit us, and express our gratitude to the new and old customers who support and care for our company!
